SoloDL Installation Kit For GET GP1 And GET Power ECU
SoloDL installation kit for GET GP1 and GET Power ECU is to connect Aim SoloDL to GET GP1 EVO and GET Power ECUs.
Supported models are:
- GET GP1 with EVO protocol
- GET GP1 with A4 protocol
- GET Power
These ECUs are aftermarket products mainly installed on Honda, Suzuki, Kawasaki, Yamaha, Husqvarna and KTM bikes. Please refer to GET website “www.getdata.it” to know supported bike models.

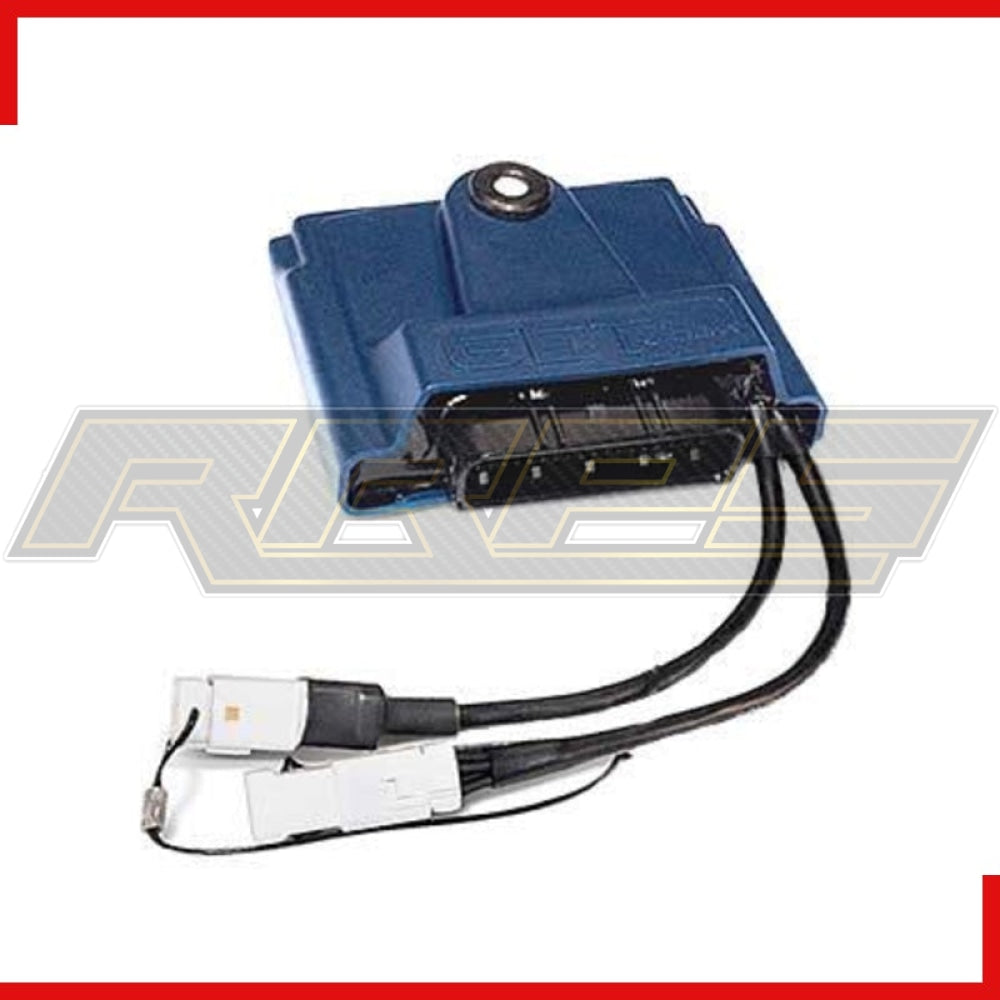

GET GP1 EVO and GET Power ECUs have a connector used to communicate data to an external device and highlighted here below.
Please note: GET ECU does not power SoloDL. It is thereby recommended to always ensure that SoloDL battery is charged.
In case GET ECU is already connected to an external device it is possible to maintain this connection
using AiM cable as shown in the drawing below.
ECU connector has a cap on it. If nothing else is connected to the ECU remove the cap and place it on Aim cable female connector (labelled “to other devices” here above) and connect Aim cable male connector to the ECU female connector.
Configuration with Race Studio 2
Before connecting SoloDL to the ECU, set it up using Race Studio 2 software. The parameters to select in the device configuration are:
- ECU Manufacturer: “GET”
- ECU Model:
- "A4" for GP1 ECU from firmware version GP86 of February the 4th 2013 or from the version identified with code A4BEQJ
- "GP1_EVO" for GET GP1 ECU with previous versions and for GET Power.
"GET" "A4" Protocol
Channels received by SoloDL connected to "GET" "A4" protocol are:
"GET" "GET GP1_EVO" Protocol
Channels received by SoloDL connected to "GET" "GP1_EVO" protocol are:
