BSD | Ducati | Weber/Marelli PICO fuel injector - 510cc/min


Brand BSD

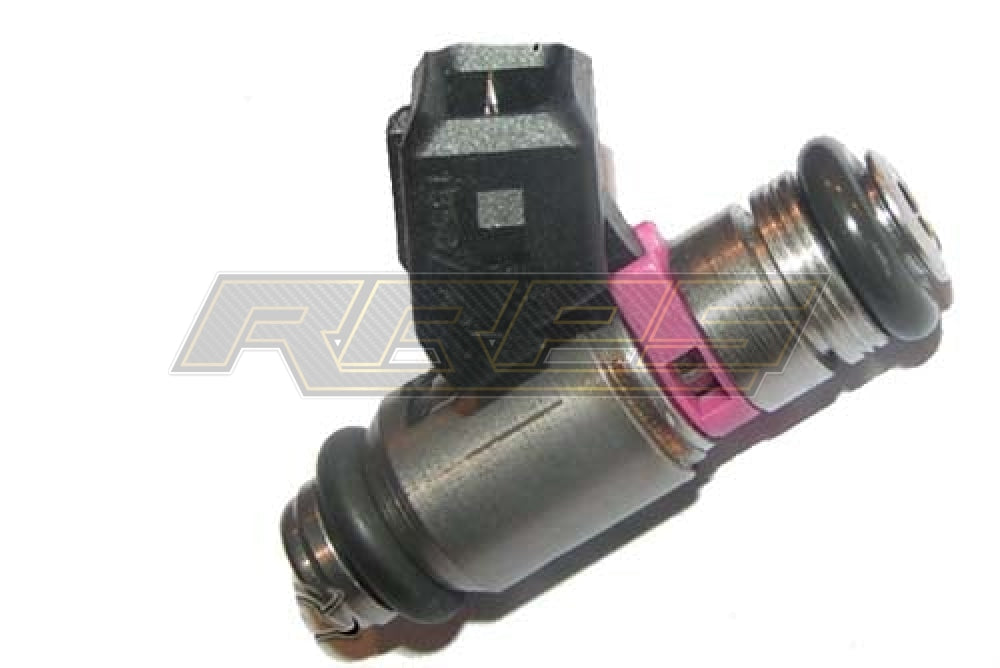

Magneti Marelli / Weber PICO fuel injector - IWP189 with violet band

12 hole 'cone shaped' spray pattern for perfect atomisation when used as a 'shower' injector high up in the air intake stream,
  • For use with fuel systems at 2.5bar up to 5bar line pressure
  • Static flow rate - 510cc/min at 3bar
  • High impedance 14ohm for use with any EFI system with a 2amp injector driver (which is just about all of them)
  • Injector 'dead time' / battery correction data is available if required.

Standard equipment on all these Ducati & Moto Guzzi bikes
  • 848
  • 1098
  • 1098R (high flow injector)
  • 1198
  • S4RS -later models
  • Streetfighter
  • Standard equipment also on many Moto Guzzi.
Superb upgrade option for 748R , 749 or 999 which use the single stream yellow injectors, but will need some re-mapping.

Probably the best all round shower injector currently available for any motorsport application, car or bike.
