Aim Solo GPS Motorcycle Racing Laptimer
Based on GPS technology, the Solo is a completely automatic lap timer. It locates its GPS position then identifies the finish line coordinates and starts completely automatically, sampling lap times. Of course, Solo can be used in all of your performance situations: circuits, hill climbs, regularity, point to point races, and performance tests. Solo displays and records speed, accelerations, braking... all of the data you need while racing. Then you can review your data immediately after each session, this helps you analyze and improve your performance.
The most important feature of the Solo GPS Motorcycle Laptimer is to show your lap times and when the Solo is powered up, it automatically recognizes the start/finish line coordinates of the track you are visiting based on the huge list of World tracks stored on Solo's internal memory, this allows very precise lap times with very little effort.
SELECT YOUR RACE MODE
CHOOSE YOUR LAP MODE
Aim Solo GPS Motorcycle Laptimer shows different lap time modes, fully configurable:
- Rolling lap time
- Static lap time

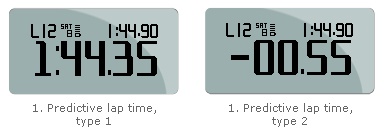

- Predictive lap time (screenshot 1), calculated during the current lap
- Predictive lap time(screenshot 2), calculated as difference between the above and the best lap
- Best lap
DATA DOWNLOAD TO YOUR PC
ECU CONNECTIONIn addition to all of Solo's powerful functions, SoloDL can be connected to the Engine Control Unit (ECU) of your motorcycle to sample, record and display. Additionally this data can be displayed on optional AiM SmartyCam HD generated video. Additional sensors and complicated wiring are not required with ECU supplied information. You can get all the info you need to improve your driving skills like RPM, throttle position, brake pressure and much more.
There are many different ECU protocols and AiM has developed a huge database to make connection to virtually all possible stock and racing ECUs.
Hardware compatibility: ECUs transmit data according to three different standards: OBDII connection which is typical of stock/production bikes and CAN or RS232 connections which are the standard for racing/aftermarket ECUs.
Solo DL GPS Motorcycle Racing Laptimer is compatible with all of these standards thanks to the huge AiM database of ECU protocols that is constantly updated and freely downloadable here.
To connect Solo to your motorcycle, you need to choose the cable that fits to you bike: SoloDL comes with your choice of cable for stock/production motorcycles or for racing/aftermarket ECUs.
ECU selection: with RaceStudio2 software it is possible to select from more than 500 specific ECU protocols, allowing Solo to read, record, and display the ECU data.
Pages configuration: like Solo, SoloDL allows fully User customizable pages to be configured with the desired data.
Data analysis: after each test, it is possible to analyze all of the data recorded. You will understand your performance at all positions on the track with the powerful Race Studio 2 professional software. Your data will be displayed in graphs, histograms and tables. This software is currently used by thousands of users all around the world.
SoloDL can easily be connected to the AiM SmartyCam HD, creating an even more powerful system.
The on-board camera accepts data from SoloDL, both GPS and ECU based data, and overlays the data directly onto the videos.
- SmartyCam HD can read the ECU data and GPS laptimes sampled by SoloDL
- On SoloDL display you can see SmartyCam HD status details i.e. the amount of free microSD card memory, battery level, recording status, diagnostic messages, etc
