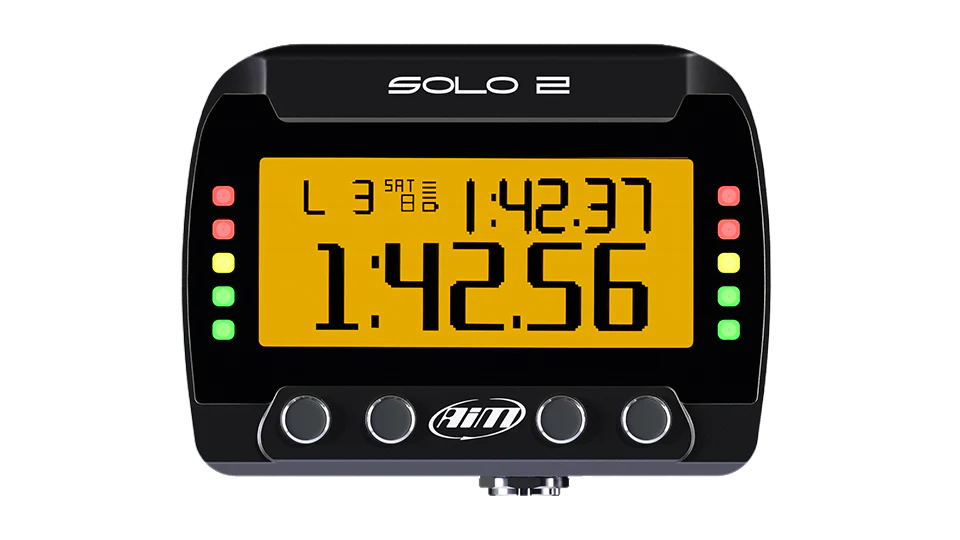

AIM SOLO 2
Solo 2 - The most precise and easy way to get lap times
The new Solo 2 receives the data from two satellites constellations, GPS and Glonass. This is a huge step forward since it is unbelievably faster and more precise than the previous version. The power ON requires only a few seconds and the lap times are calculated with a max 2/100 sec of tolerance.
The screen can be backlighted in one of the seven available colours.
Find your track easily and quickly
Solo 2 can rely on a database of more than 3,000 tracks all over the world: as soon as it switches on, Solo 2 identifies its position, recognises the starting line coordinates of the track and starts sampling lap times.
In case the track is not in the database, no problem: Solo 2 realises it and enters into the auto learning mode, automatically understands the characteristics of the track and gives the lap time anyway.
Even the predictive lap time is much more reliable, and the configurable RGB LEDs will give you a clear and fast indication of the comparison with your best lap.
Race mode selection
Solo 2 can manage different types of races:
- Speed races in a closed circuit
- Point to-point races
- Performance tests (0-60 mph etc.)
In each of these configurations, Solo 2 gives the proper information during the test and powerful data review immediately after each session.
Data recall on screen
At the end of your test, you can quickly review all the key information on your display.
Wi-Fi communication with the PC
Wi-Fi connection: easy, fast, without connectors nor cables: the best way to configure your Solo 2, to manage the track database, to download the data to your PC.
Use your iPhone for a quick and comfortable data analysis, for managing the track database and even for an On-Line view of the most important parameters of your Engine
(in case you have chosen the Solo 2 DL).
Solo 2 DL, the Solo with ECU connection
More than 1,000 protocols for 1,000+ ECU in the database, for easily connect your Solo 2 DL to your Engine Control Unit and get a lot of information with just one cable. In case your ECU protocol is not in the database, no problem: an ECU Driver Builder is always available in the Race Studio 3 configuration software, and you will be able to create your protocol by yourself.
Coil RPM Input
Solo 2 DL now features a digital input allowing to log RPM either from square wave signals (8-50 V each signal) or pulse signals (150-450 V ignition coil trigger – primary circuit).
SmartyCam HD connection
The perfect connection: get all the data from your ECU, merge them with the GPS information and transmit everything to the SmartyCam HD, that will show them in graphical overlay in the video.
