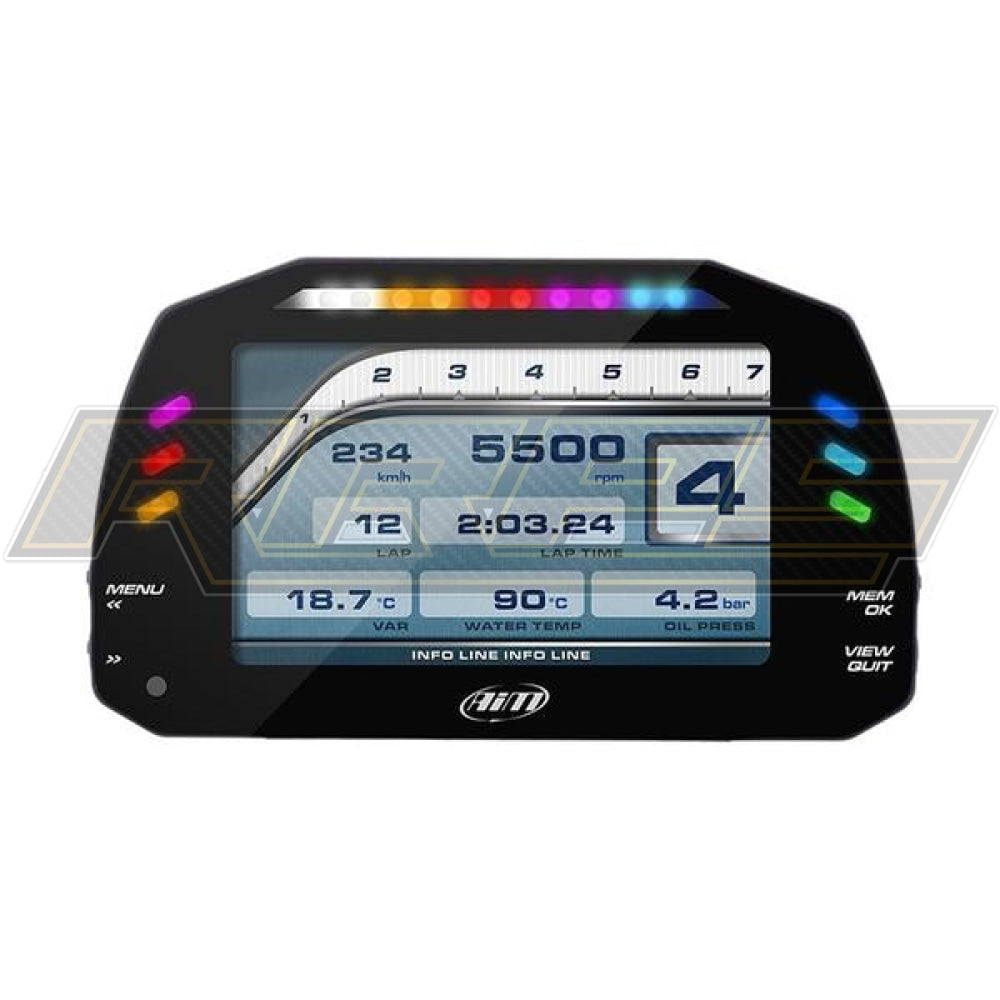

Aim MXS Strada Motorcycle Racing Dash Display
The Aim MXS Strada Motorcycle Racing Dash Display is a color, high-contrast, 5" TFT dash display developed for race street and race car/bike installations which are fully configurable. It comes with two loom options, CAN or OBDII. You can configure alarm LEDs choosing color, blinking frequency and defining the logic for turning them on or off.
The MXS Strada Motorcycle Racing Dash Display acquires data from the ECU of your bike making it relatively easy to fit.
The MXS Strada is the evolution of MXL Strada, one of the most widely-spread dashes on tracks and streets all over the world. The MXS Strada has a 5″ color display with great visual impact, configurable to show lap times and all the info coming from the Engine Control Unit, analog/digital inputs, pre-defined math channels and – optionally – the GPS Module. Its data sampling capability can also be incremented adding up to eight expansion modules.
MXS Strada Motorcycle ECU Connection
Aim systems acquire data from the ECU of your bike. The list of available ECU drivers is constantly updated and upgraded on our support site and are published here. The support site includes over 1,000 different ECU’s both Stock and Racing. They are sorted by manufacturer/vehicle model and for each ECU you find the proprietary communication protocols, including the standard OBDII ones. From a hardware point of view, Aim systems manage the following data lines:
MXS Strada Motorcycle Analog Digital Inputs
Aim systems analogue inputs are recorded up to 1,000 times per second each. You can connect and monitor all kinds of sensors, like:
- Ratiometric potentiometers
- Pressure sensors
- K-type thermocouples
and many others, all your custom sensors included
Aim systems also feature digital inputs:
- Speed signals – From the ECU, from the GPS and from the wheel sensors.
- RPM – From the ECU or from a digital input connected to a square wave signal (8 to 50 V) or to a low voltage (from 150 to 400 V) of the coil.
- Lap signal – Lap and split times are sampled by the GPS or via optical receiver/transmitter
MXS Strada Second CAN
An innovative MXS Strada Motorcycle feature, is its CAN2 line, managing data coming from your additional modules (i.e. ABS, traction control, infrared temperature sensors and more. This feature meets the requirements of a growing number of race drivers as the use of additional modules is becoming quite common in a number of race series.
MXS Strada Motorcycle Math Channels
Aim systems gives you Math Channels values straight away and the dash logger can be configured to display those values (i.e. brake bias, calculated gear) all in real time.
High Contrast TFT Display
The MXS Strada Motorcycle shows with RPM scale, all the data you need, like speed, water temperature and oil pressure, lap times and much more. You can choose the custom pages you wish, including up to four additional fields
A wide library of page styles, defining which data to be shown, their end of scale and measured units. Swapping between pages is quite easy with the Aim MXS Strada using the push buttons provided.
Watch Your Data in Pre-Configured Pages
The MXS Strada Motorcycle has a high contrast TFT display and its visual quality is always optimal, as its ambient light sensor keeps the backlight at the best brightness levels. The dash is available in the “Street Icons” version needed by street users (fuel, oil, water temp etc.)
Flexible Shift Lights and Alarms
The ten multi-coloured RGB shift lights on the MXS Strada can be customised to your liking to define the RPM threshold for each single gear. The same flexibility applies to the configurable RGB alarm LED's. You can configure them in order to turn them on/off depending on analog or digital inputs, ECU values, expansion values, math channels or, optionally, GPS information. You choose conditions and colours and you can select a solid alarm or flashing one and the flashing frequency. It is also possible to configure an accompanying text message along with the alarm priorities.
With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.
Two Digital Outputs
Aim MXS Strada Motorcycle features a LOW SIDE type (switch to ground) digital output configurable in order to be activated/deactivated depending on the value of the analogue / digital inputs or on impulses coming from the ECU. This permits to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.
Switch Input Module
The Switch Input Module is a small compact Sim input device produced by us in the UK which provides a simple way to input voltage signals to the dash. The module allows for connection of lights, left and right indicators, dipped beam, main beam, hazard warning, in fact up to 14 independent voltage inputs, that are then sent to the display or logger through the CAN II stream, allowing you to turn on the symbols or lights on the display.
MXS Strada Connection Examples
Race Studio 3
MXS Strada is to be configured via Race Studio3: you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital output, Alarms, Shift Lights and all the expansions you need.
MXS Strada Technical Specifications
Display: 5" TFT
Resolution: 800x480 pixels
Brightness: 700cd/m2 - 1,100 Lumen
Ambient light sensor: Yes
Alarm LEDs: 6 RGB freely configurable
Shift light: 10 integrated freely configurable RGB LEDs
CAN connections: 2
ECU connections: CAN, RS232 or K-Line
ECU compatibility: + 1,000 industry leading ECUs
Expansion CAN connection: GPS, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD
Analog inputs: 4 fully configurable, max 1,000 Hz each
Digital inputs: 1 speed input, lap signal, coil RPM input
Digital outputs: 1 (1 Amp max)
Second CAN: Yes
Body: Anodized Aluminum
Connectors: 2 AMP connectors
Dimensions: 169.4x97x23 mm
Weight: 480 g
Power consumption: 400 mA
In The Box
MXS Strada Motorcycle
14 pin standard wiring
23 pin connector + contacts
Race Studio 3
