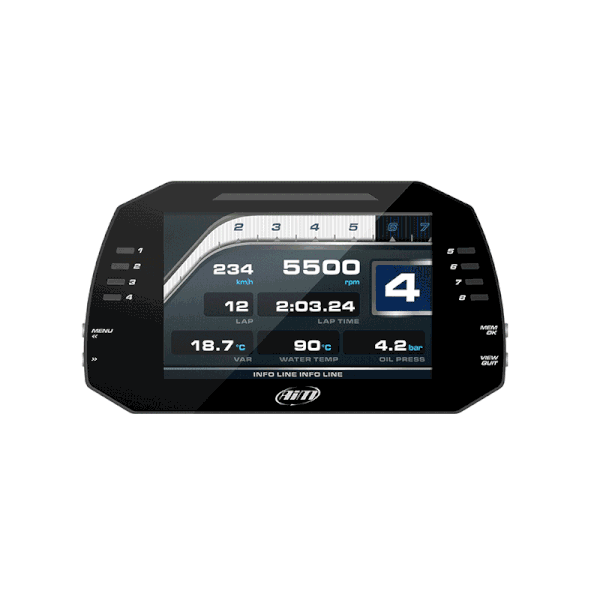

Aim MXG Motorcycle Racing Dash Data Logger
The Aim MXG Motorcycle Data logger is a new dash logger from Aim designed to acquire and display data coming from your ECU, the internal accelerometer and gyro as well as from the GPS Module included in the kit. Performance and data acquired can also be incremented adding up to eight expansion modules.
MXG Motorcycle Data logger
MXG Motorcycle Data logger – A Wide Range of Data Sources
Aim MXG Motorcycle Data logger is the new dash logger designed to acquire and display data coming from your engine ECU, the internal accelerometer, gyro, and from the GPS Module included in the kit. Analog/digital inputs and predefined math channels.
Performance and data acquired can also be incremented adding up to eight expansion modules. The only difference between the two is the MXS is a compact 5″ display and MXG is a 7″ display, a better fit for wide cockpit installations.
MXG ECU Connections
Aim MXG Motorcycle Data logger acquires data from the ECU of your vehicle.The list of available ECU drivers is constantly updated and upgraded and is published in our support site which include over 1000 different ECU’s, either Stock and Racing. They are sorted by manufacturer/vehicle model and for each ECU, you will find the proprietary communication protocols, including the standard OBDII ones.
From a hardware point of view, MXG manages the following data lines:
MXG Motorcycle Data logger Analog Digital Inputs
MXG Motorcycle Data logger has eight analog inputs, recorded up to 1000 times per second each. You can connect and monitor all kinds of sensors, like:
- Ratiometric potentiometers
- Pressure sensors
- K-type thermocouple and many others, all your custom sensors includ
MXG Motorcycle Data logger also features six digital inputs
- Four speed signals – MXG can receive the speed signal from the ECU, from the GPS and from the four wheel sensors.
- RPM – MXG can receive the RPM signal from the ECU or from a digital input connected to a square wave signal (8 to 50 V) or to a low voltage (from 150 to 400 V) of the coil.
- Lap signal – Lap and split times are sampled by the GPS (included in the kit) or via optical receiver/transmitter.
MXG Motorcycle GPS Module
The GPS08 Module (included in the kit) connected via CAN to the MXG makes lap time calculation and track position analysis very easy. Each Aim MXG memory stores more than 200 world tracks start/finish line coordinates: as soon as MXG Motorcycle Data logger is switched on, the GPS08 Module will locate its position, identify track-line coordinates and start immediately sampling lap and split time.
If the track is not included in the database, it is always possible to add the start/finish line coordinates to the Aim MXS via PC before going to the track, using the Race Studio 3 – Track Manager software.
MXG Motorcycle Data logger Second CAN
An innovative MXG Motorcycle Data logger feature is its CAN2 line, managing data coming from your additional modules (i.e. ABS, traction control, infrared temperature sensors and more…). This feature meets the requirements of a growing number of racers, as the use of additional modules is becoming quite common in a number of series.
MXG Motorcycle Internal Accelerometer and Gyro
The internal three-axial accelerometer and the gyroscope provide the MXG a very powerful array of information. These force and motion sensors enable you to quantify the dynamic characteristics of your vehicle. Measuring acceleration forces and gyro rates can assist in determining how to improve your vehicle performances.
MXG Motorcycle Math Channels
With MXG Motorcycle you immediately get Math Channels values. The dash logger can be configured to display those values (i.e. brake bias, calculated gear) in real time.
Extra Wide, High Contrast 7″ TFT display
An ambient light sensor keeps the backlight at optimum brightness levels.

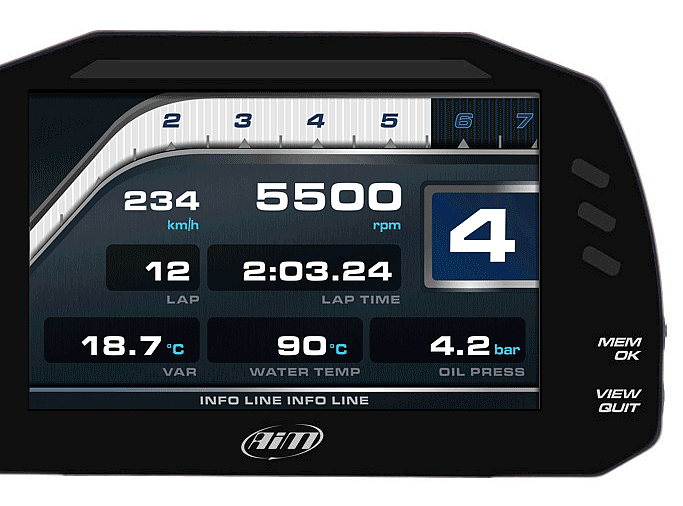

Freely Configurable Pages
You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages can be managed pushing one or two push buttons.
MXG Motorcycle has Eight configurable RGB alarm LED’s. You choose the conditions, you choose the colours. Select a solid alarm or flashing one and the flashing frequency then choose to have an accompanying text message and set the alarm priorities.
Two Digital Outputs
Aim MXG features two digital outputs. Each of them can give an output of 1 amp at 12 volts: they can be configured in order to be turned on/off depending on the value of the analogue or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.
Integrated Shift Light Array
Choose from a host of advanced multicoloured RGB shift light patterns that can be customised to your liking, and for each unique gear when required. Using the built-in CAN bus, you can add expansion modules to the Aim MXG to increment the performance and the data acquired.
Race Studio 3
Race Studio 3 is the heart of your MXG Motorcycle, managing all your racing activities. The Race Studio 3 can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.
Display: 7” TFT
Resolution: 800x480 pixels
Brightness: 700cd/m2 - 1,100 Lumen
Ambient light sensor: Yes
Alarm LEDs: 8 RGB freely configurable
Shift lights: 10 integrated freely configurable RGB LEDs
CAN connections: 3
ECU connections: CAN, RS232 or K-Line
ECU compatibility: + 1,000 industry leading ECUs
Expansion CAN connection: GPS, Channel Expansion, Thermocouple Expansions, Lambda Controller,
Analog inputs: 8 fully configurable, max 1,000 Hz each
Digital inputs: 4 Speed inputs, lap signal, coil RPM input
Digital outputs: 2 (1 Amp max each)
Second CAN: Yes
WiFi connection: Yes
Accelerometer: Internal Three-axial ± 5G + Three-axial Gyroscope
Internal memory: 4 GB
Body: Anodized Aluminum
Connectors: 2 Motorsport connectors
Dimensions: 237x127.6x26 mm
Weight: 950 g
Power consumption: 400 mA
In the Box
In The Box
- MXG Dash Datalogger for Car Racing
- 37 Pin standard harness
- GPS Module with cable
- USB cable
- Software installation CD
