Aim Memory Module Motorcycle SD Card Data Logger Storage


Brand Aim

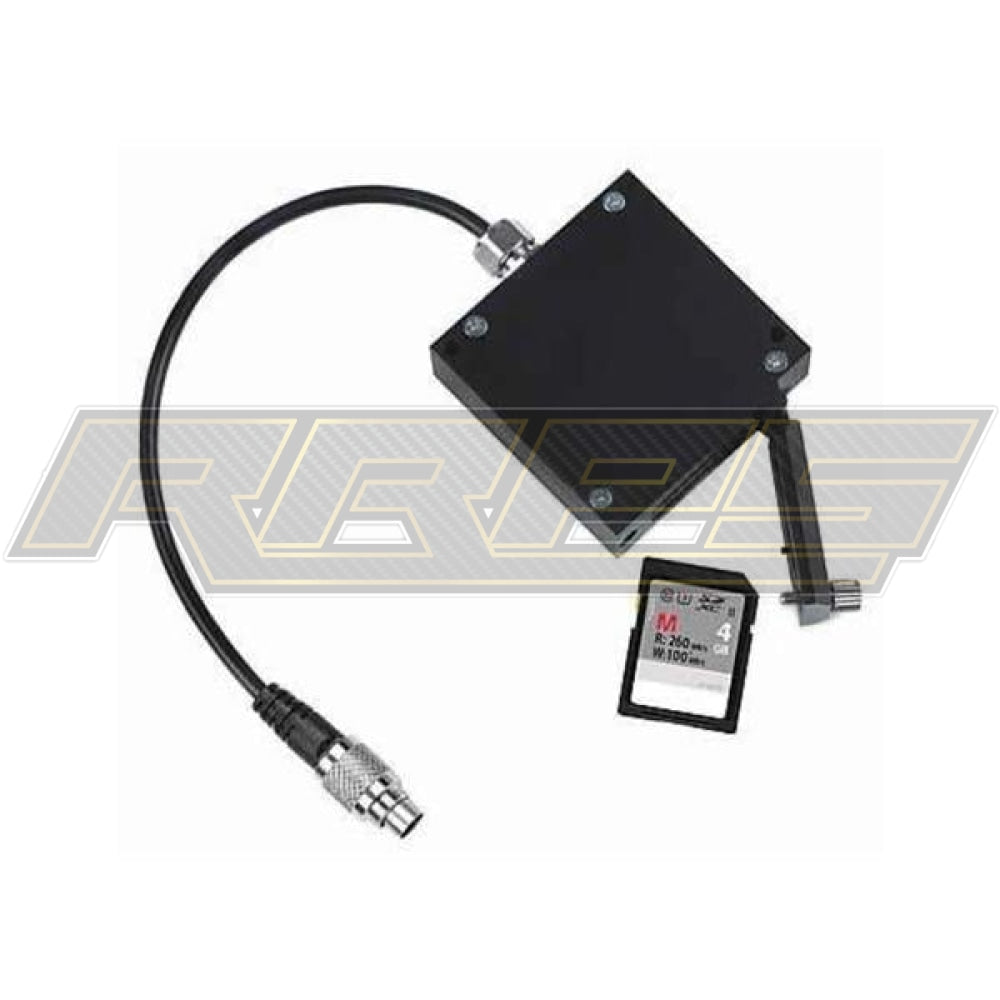

The Aim Memory Module - Motorcycle SD Card Data Logger Storage, is a small SD Card holder that can be connected via CAN bus and offers massive data storage for Aim MXL2, MXG, MXS, EVO4s and EVO5 Data Loggers.

Aim Memory Module – SD Card Aim Logger Storage

The Aim Memory Module management is really very simple. Just connect the Module to your logger and the data will be saved simultaneously both in the logger and on the SD Card. No configuration is needed.

The SD card can be removed and replaced even during pit stops, while the car engine is still ON, making it extremely fast to get the data during endurance races or long tests, when the time at the paddock is really limited.

When the session is over, all you need to do is moving the SD card from the Module to your PC and download the data using Race Studio 3.

The Module features a front LED showing its recording/fw updating status:

Aim Memory Module LED

The kit includes a 4 Gb SD card and the device can support up to 128 Gb cards.

Technical Specifications

Max power consumption 50 mA
Cable length 40 cm
SD Card 4 Gb (in the kit); it supports up to 128 Gb
Dimensions 55.5 x 78.3 x 18 mm
Weight 103 g
Waterproof IP65

In the box
Memory Module with 4 Gb SD Card.
