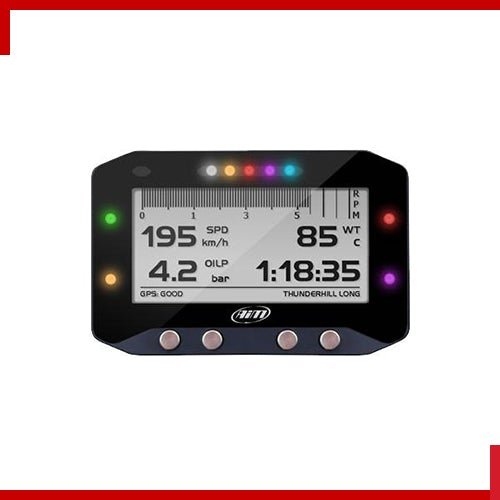

Aim GS-Dash Motorcycle Display
£534.00
The Aim GS-Dash Motorcycle Racing Dash Display has been designed to show data sampled by the new generation of Aim data loggers, EVO 4S and the Aim EVO 5. All data coming from your vehicle’s ECU, from the accelerometers, from the GPS module as well as from your custom sensors.
EASY AND IMMEDIATE READABILITY
In its compact structure, Aim GS-Dash Motorcycle Racing Dash Display features a wide 268x128 pixel display to maximise readability. The screen can be backlighted in one of the seven available colors and the incorporated light sensor makes brightness and contrast ideal in all light conditions.
UP TO 9 PAGES SHOWING THE DATA YOU NEED
In its compact structure, GS-Dash features a wide 268x128 pixel display to maximise readability. The screen can be backlighted in one of the seven available colors and the incorporated light sensor makes brightness and contrast ideal in all light conditions.
Lap times
You can vsee the rolling time, static or predictive lap times
(as an absolute value or as a difference vs. the Best Lap).
Recall your session highlights
A key-data summary is available at the end of each session where you can also see a list of all the laps of the sessions, with their times, min/max speed and min/max RPM's.
Configure your LED’s One by One
Five RGB shift lights can be configured for each gear, choosing LED color and RPM threshold values which will turn it on/off.
Alarms are managed in a very flexible way: you can choose the situation that generates the alarm, the LED behavior (blinking frequency and color) when the alarm appears and the conditions for its switch-off. A warning message can also be shown.
Easy Configuration
Configuration of Shift lights, alarms and customized data pages is intuitive and immediate using the dedicated Race Studio 3 software.
Shift Lights and Alarms are to be configured using Race Studio 3 configuration panel (see image on the left).
Data is viewed in customisable pages. With few clicks you can enable up to eight Custom Pages: you decide where to show the desired variables (up to 4 on each page) from those sampled by the ECU, the accelerometers and the GPS values from EVO4S/EVO5. Configuration can be done either using Race Studio 3 (see panel on the left) or via keyboard (see below).
Compact and resistant chassis
Its small dimension makes it particularly suitable for small cockpit installation (i.e. bikes, formula cars). Manufactured in aluminium with edge-to-edge glass and metallic pushbuttons the GS-Dash is robust and fully waterproof.
